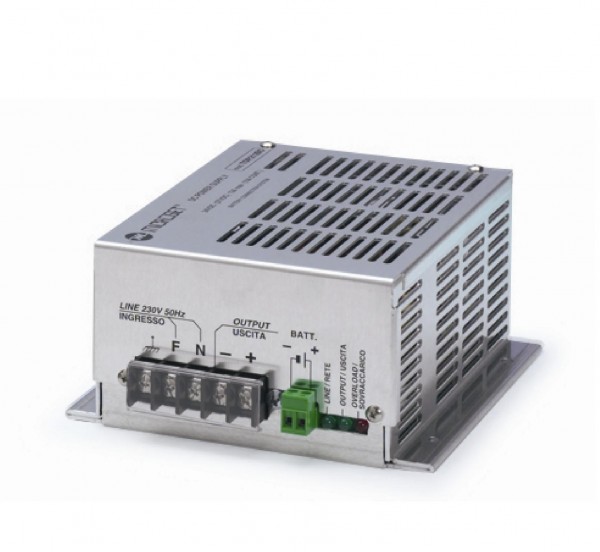

RAIL BAR
SWITCHING POWER SUPPLY RAIL BAR MODULAR SYSTEM: with battery interface and shut down discharged battery.
Push button battery test. Bolwer less. Remote control for mains failure. Spark lightning protection.
Power IN 230Vac (opt.110Vac-60Hz).
zoom
MODEL Vdc out A out W Charger capacity Indicative € price
TOP-R120BCS 13,5V 16-20A 300W 3A 215,00
TOP-R 212BCS 28V 10-12A 300W 2A 220,00
TOP-R 408BCS 56V 6-8A 440W 1A 225,00

OPTIONS SWITCHING POWER SUPPLY TOP-R BCS
MODEL Vdc A Description Indicative € price
CB1 - 12V 12V 3A Additional battery charger 60,00
CB1 - 24V 24V 2A Additional battery charger 75,00
CB1 - 48V 48V 1A Additional battery charger 75,00
Power switch Power input switch
230-110Vac 		80,00
CB2 - 12V 12V 6A Additional battery charger 80,00
CB2 - 24V 24V 4A Additional battery charger 95,00
CB2 - 48V 48V 3A Additional battery charger 95,00

SWITCHING POWER SUPPLY: with battery interface and shut down discharged battery.
Protection: overload and overtemperature. Bolwer speed control. M.T.B.F. 80.000 hours.
Power IN 230Vac (opt.110Vac-60Hz).
zoom
MODEL Vdc out A out W Charger capacity Indicative € price
HSB 115 13,5V 15A 200W 4A 285,00
HSB 135 13,5V 35A 480W 6A 315,00
HSB 155 13,5V 55A 750W 12A 435,00
HSB 225 27,5V 25A 700W 3A 315,00
HSB 235 27,5V 35A 1000W 6A 490,00
HSB 412 56V 12A 700W 3A 350,00
HSB 420 56V 20A 1200W 5,5A 515,00
HSB power switch 80,00
HSB powerful batt. charger Type 1 90,00
HSB powerful batt. charger Type 2 150,00
