RACK 19"

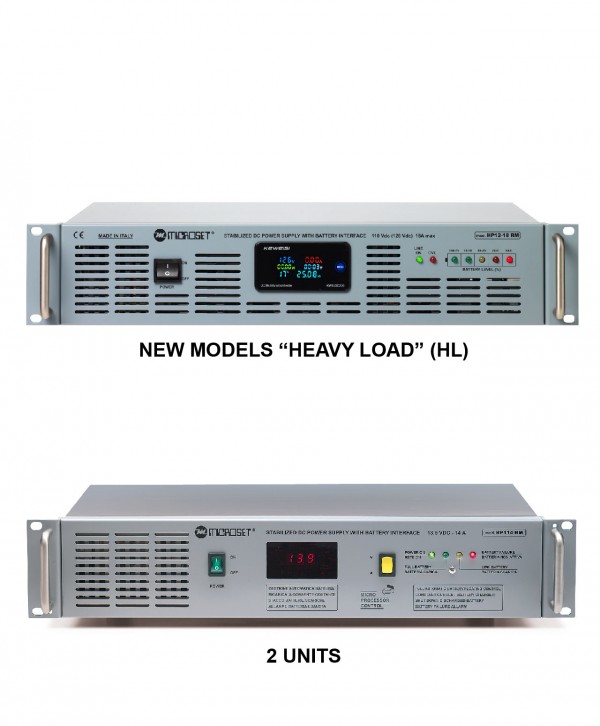

RACK 19" PLUG-IN POWER SUPPLY: with floating battery interface.
Microprocessor control, low battery automatic shutdown, exhausted battery alarm, local and remote signalling, parallel connection facility.
Power IN 230Vac (opt.110Vac-60Hz).
zoom
MODEL Vdc out A out Charger capacity Indicative € price
HP 114RM 13,5V 14A 4-5A 520,00
HP 125RM 13,5V 25A 6-7A 630,00
HP 135RM 13,5V 35A 10A 640,00
HP 155RM 13,5V 55A 10-15A 740,00
HP 175RM 13,5V 75A 10-15A 860,00
HP 220RM 24V (28V) 25A 5-6A 690,00
HP 230RM 24V (28V) 30A 6-7A 765,00
HP 265RM (HL) 24V (28V) 60A 10-13A 1.085,00
HP 410RM 48V (56V) 12A 3-4A 705,00
HP 420RM 48V (56V) 25A 5-6A 850,00
HP 445RM (HL) 48V (56V) 40A 7-8A 1.085,00
HP 12-18RM (HL) 110V (124V) 18A 3-4A 1.095,00

RACK 19" PLUG-IN POWER SUPPLY OPTIONS
zoom
MODEL Description Indicative € price
SL 6 1U panel distributor selector
1 input - 6 selectable outputs		 165,00
IN 110Vac Power in 110Vac - 60Hz 80,00
Redundant Combiner 2-ways parallel combiner (1+1) 12V 75A - 24V 60A - 48V 40A - 110V 12A 275,00
Redundant Combiner 2 ways parallel combiner (1+1) 12V 55A - 24V 30A - 48V 20A 165,00
Trafo IN Internal input galvanic trafo
only for
HP220RM and HP410RM		 205,00
Powerfull batt. charger Powerful battery charger 90,00

RACK 19" PLUG-IN POWER SUPPLY: with floating battery interface and SNMP network control.
Microprocessor active control, low battery automatic shutdown, exhausted battery alarm, local and remote signalling.
Power IN 230Vac (opt.110Vac-60Hz).
zoom
MODEL Vdc out A out Charger capacity Indicative € price
HP 125SNMP 13,5V 25A 4-5A 1.210,00
HP 220SNMP 24V (28V) 20A 6-7A 1.265,00
HP 410SNMP 48V (56V) 10A 3-4A 1.265,00
HP 420SNMP 48V (56V) 20A 5-6A 1.495,00
HP 440SNMP-3U 48V (56V) 40A 8-10A 2.025,00

RACK 19" PLUG-IN PROFESSIONAL POWER SUPPLY: heavy load, high efficiency
Protections: overload and overtemperature. Blower speed control. Continuous service 24h.
M.T.B.F. 80.000 hours. Power IN 230Vac (opt.110Vac-60Hz).
zoom
MODEL Vdc out A out Description Indicative € price
SP 150R 13,5V 50A Power supply version 560,00
SP 190R 13,5V 90-95A Power supply version 850,00
SP 250R 24V 50A Power supply version 850,00

PROFESSIONAL SWITCHING BATTERY CHARGER RACK 19": for heavy applications.
Useful for all battery types. Blower speed control. M.T.B.F. 80.000 hours.
zoom
MODEL Vdc out A out Battery capacity Indicative € price
SP 150R-BC 12V 50A 1xbatt.12V(300-600Ah) 650,00
SP 230R-BC 24V 30A 1xbatt.24V(300-400Ah) 700,00
SP 420R-BC 48V 20A 1xbatt.48V(200-300Ah) 750,00
